Product Name: TT LINE12 Line Array Loudspeaker System |

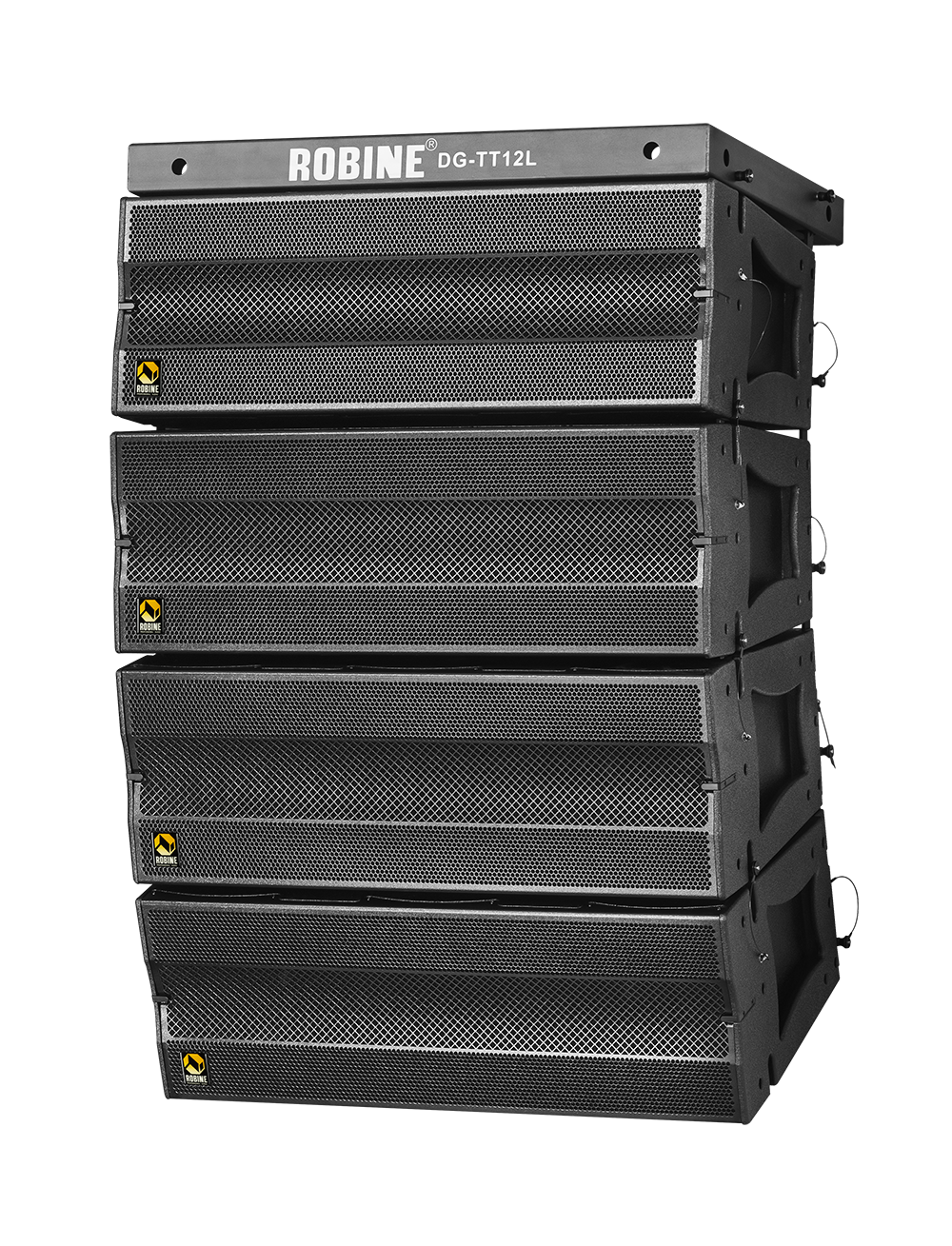

Products Pic: |
 |
About this product: |
Model: TT LINE12
|
Type |
Dual12'' Line Array Loudspeaker System |
|
Drivers |
2 x 3''HF / 6 x 4.5''MF/ 2 x 12''LF Neodymium |
|
Frequency response |
40 - 18500 Hz |
|
Nominal impedance HF/MF/LF |
8/ 8/ 8 ohms |
|
Power handling capacity HF(RMS/Peak) |
320/640 W |
|
Power handling capacity MF(RMS/Peak) |
400/800 W |
|
Power handling capacity LF(RMS/Peak) |
900/1800 W |
|
Nominal dispersion angle( H x V ) |
120°x 7° |
|
Splay angle setting |
0°...10°(2 increment) |
|
Sensitivity(1w/1m) HF/MF/LF |
111 dB / 98dB / 99 dB |
|
Max SPL(1m) |
142 dB |
|
Connections |
2×Neutrik® Speakon NL8'S |
|
Pin assignment |
NL8: HF+4/-4, MF+3/-3, LF+2/-2, |
|
Enclosure |
15mm Premium Finland birch plywood |
|
Finish |
Black Polyurea Coating |
|
Protective Grille |
Black perforated steel grille with acoustic dust screen |
Rigging
|
Quick rigging with 2 pcs shackles in steel end frame;
Secured with Ø8mm quick-release lock pins. |
|
Dimensions (h x w x d) |
350 x 990 x 550 mm [13,8 x 39 x 21,7 in] |
|
Net Weight |
49 kg/107.8 lbs |
|
