Product Name: L-10TX Line Array Loudspeaker System |

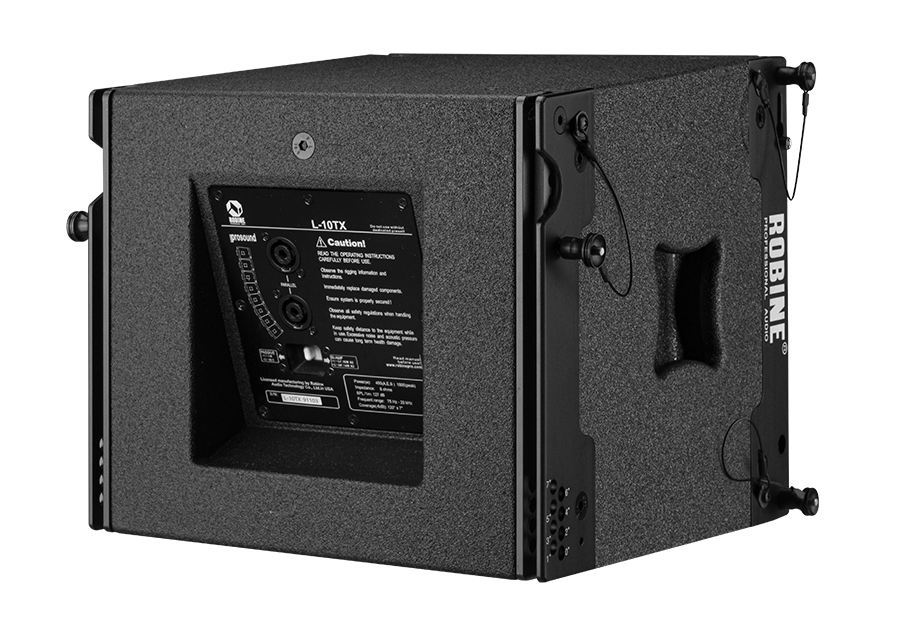

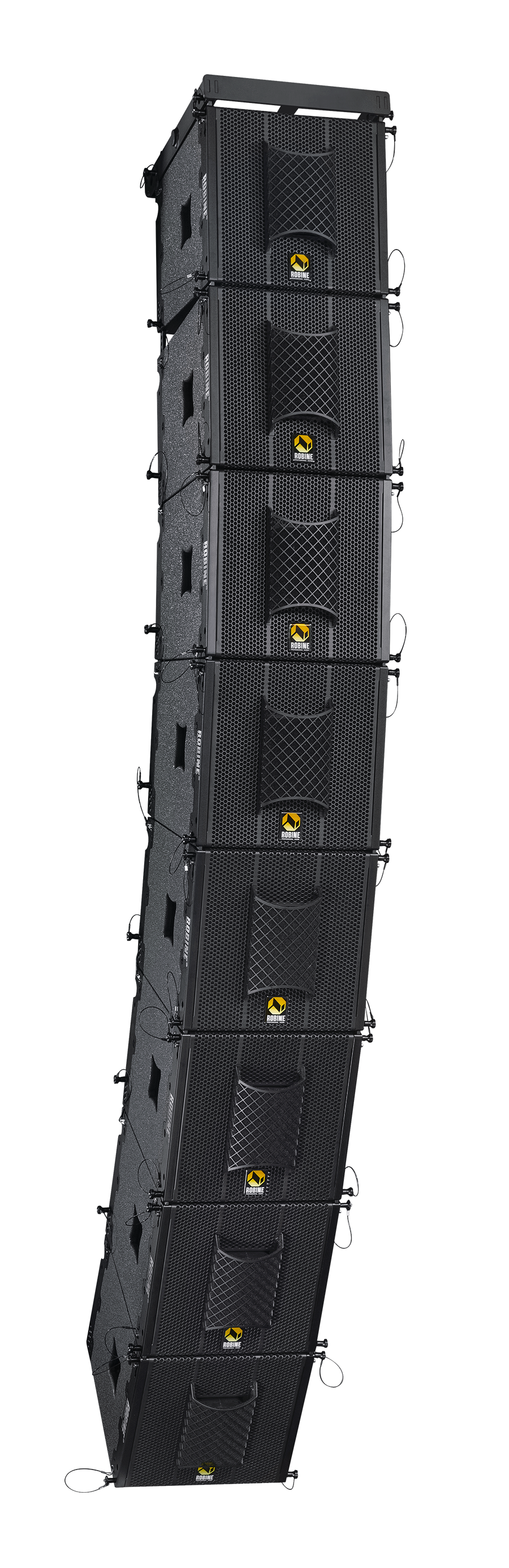

Products Pic: |
 |
About this product: |
Model：L-10TX
|
Type |
Line Array Loudspeaker System |
|
Drivers |
1 x 3'' HF / 1 x 10'' LF Coaxial Transducers |
|
Frequency Response（±3dB) |
75 Hz-20 kHz |
|
Rated Power(AES/Peak) |
450W / 1800W |
|
Sensitivity（1m/1w) |
101 dB |
|
Max SPL(1m) |
127 dB |
|
Nominal Impedance |
8 ohms |
|
Nominal dispersion angle( H x V ) |
120°x 7° |
|
Splay angle setting |
0°...7°(1 increment) |
|
Connections |
2×Neutrik® Speakon NL4'S |
Pin assignment
Passive
BI-AMP |
NL4: +1/-1
NL4: +1/-1 LF: 350W 8 ohms
NL4: +2/-2 HF: 160W 8 ohms |
|
Enclosure |
15mm Premium Finland birch plywood |
|
Finish |
Black Polyurea Coating |
|
Protective Grille |
Black perforated steel grille with acoustic dust screen |
Rigging
|
Quick rigging with 2 pcs shackles in steel end frame;
Secured with Ø8mm quick-release lock pins. |
|
Dimensions (h x w x d) |
310 x 316 x 415 mm [ 12,2 x12,4x16,3 in] |
|
Net Weight |
14.8 Kg / 32.6 Ibs |
|
Packing |
Carton |

|
