Product Name:  L-12TX Line Array Loudspeaker System

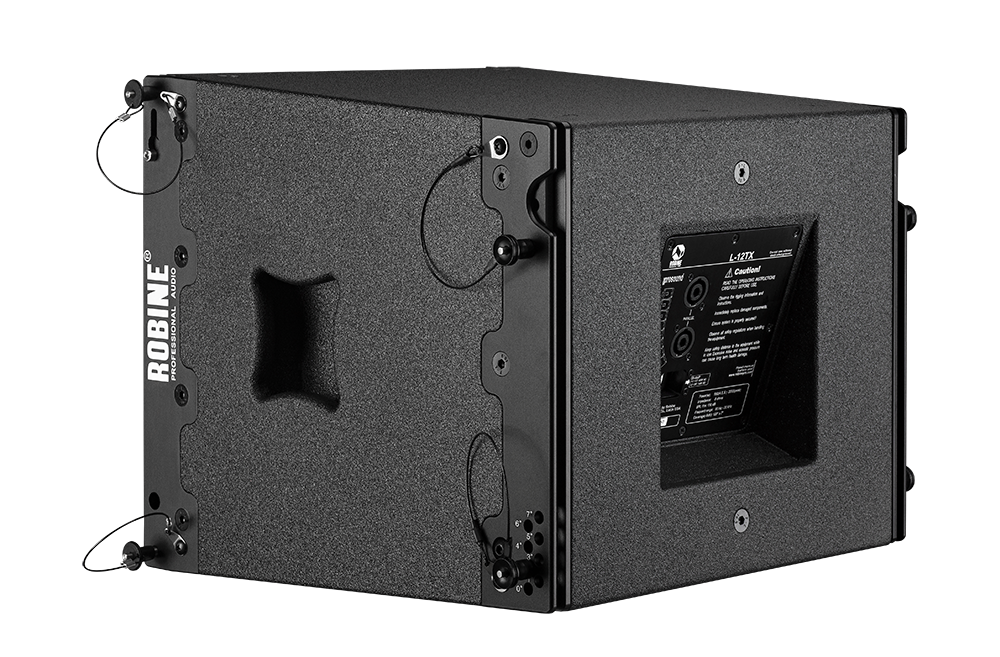

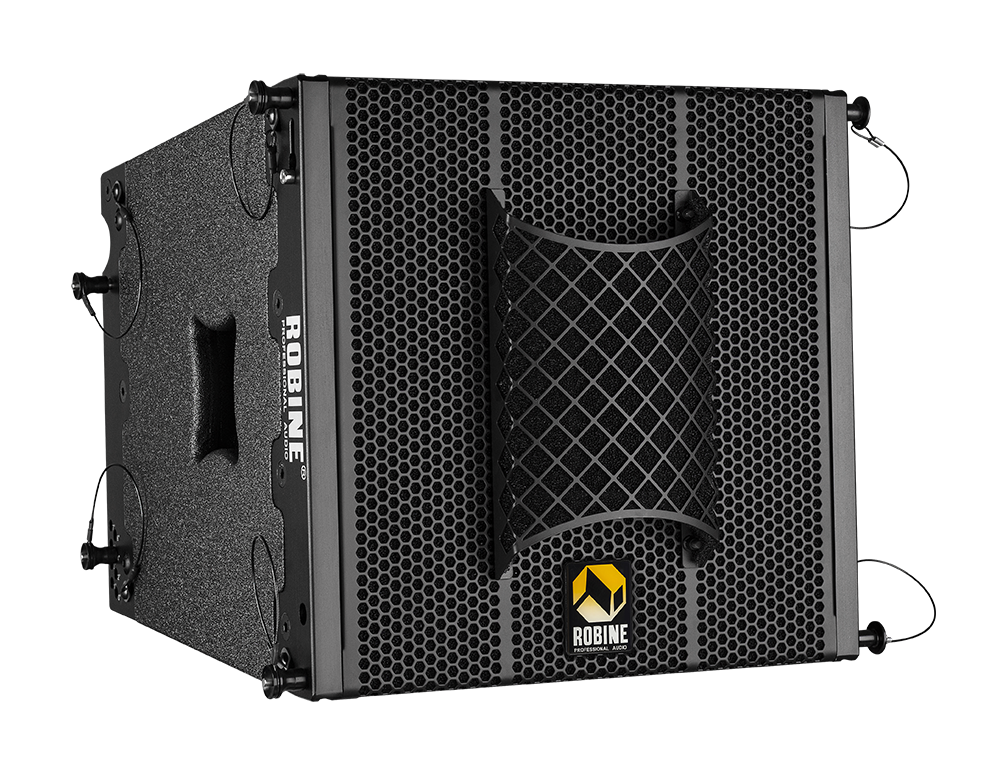

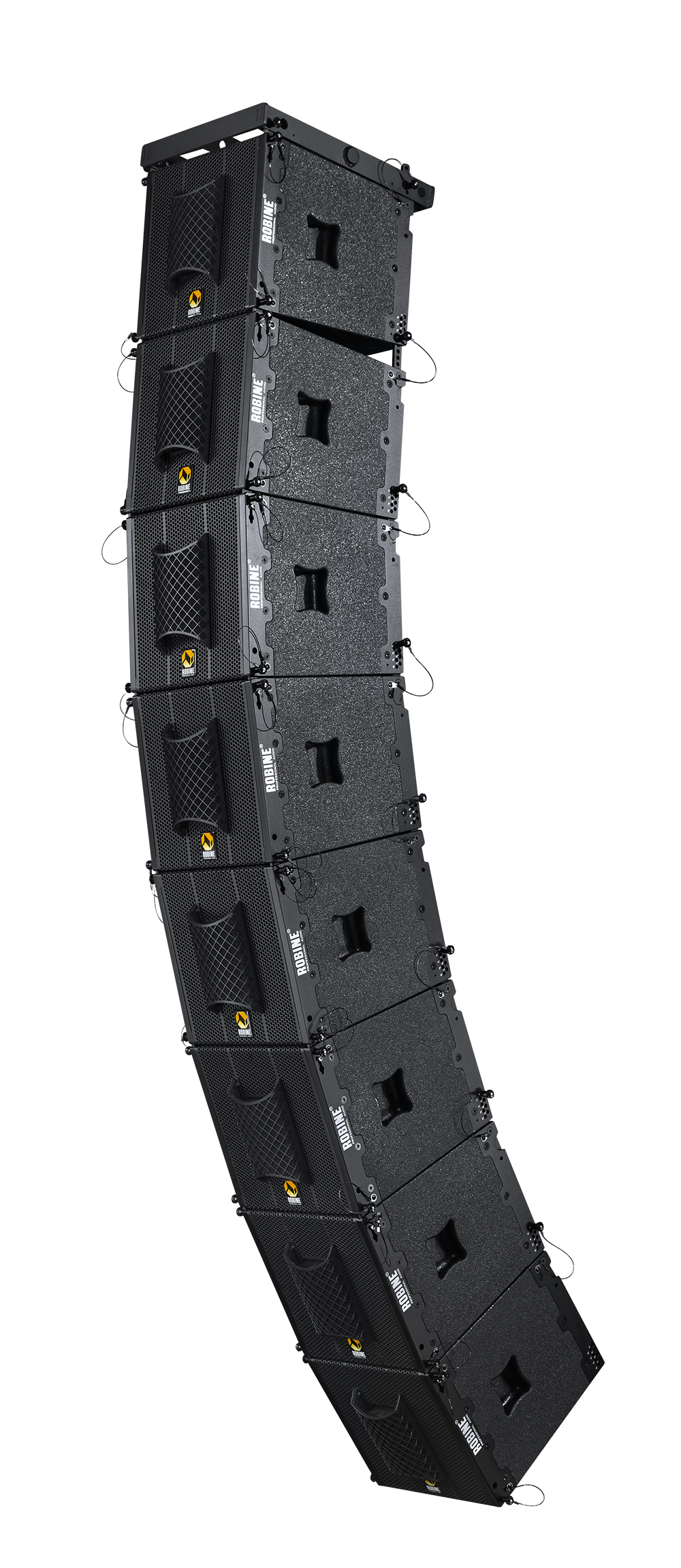

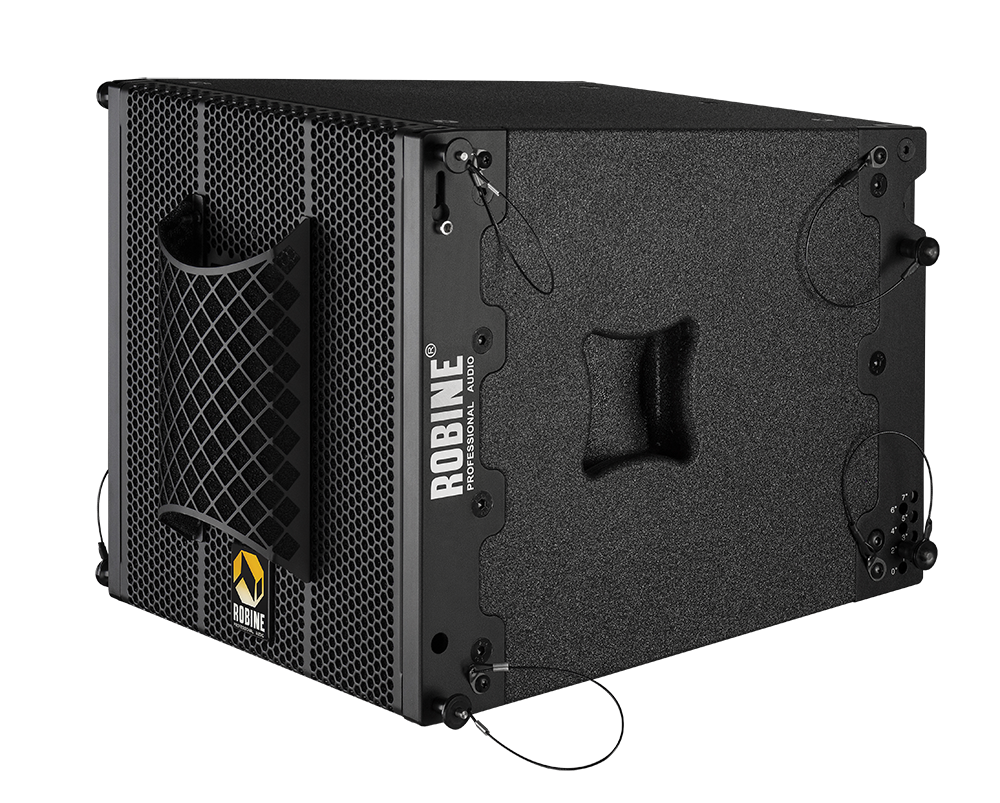

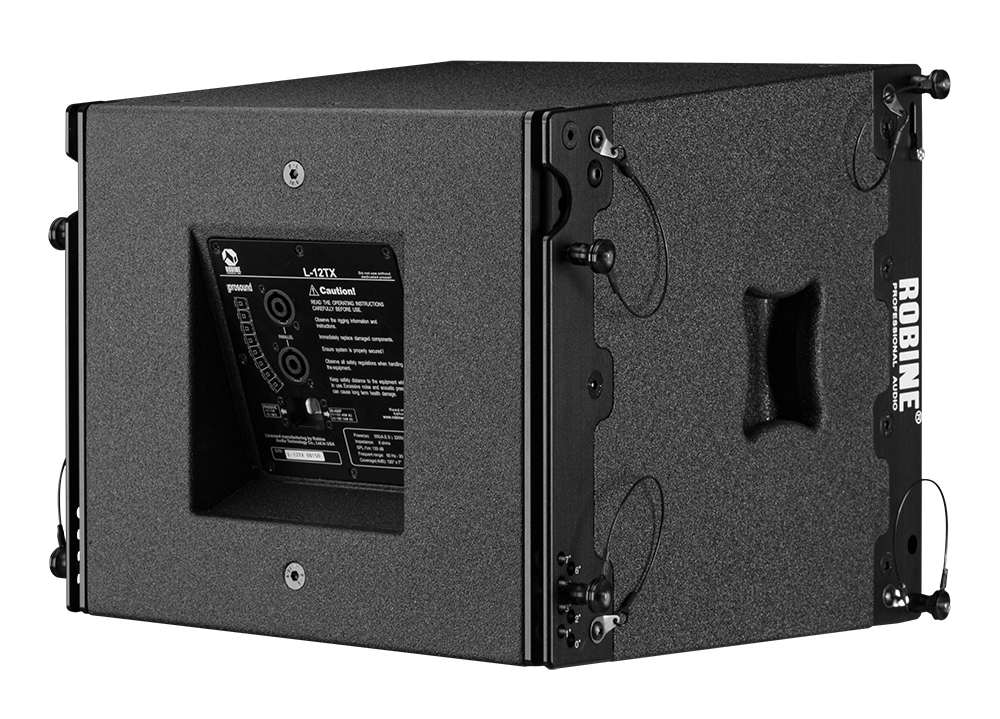

Products Pic:

About this product:

Model：L-12TX

Type   Line Array Loudspeaker System
Drivers   1 x 3'' HF / 1 x 12'' LF coaxial transducers
Frequency Response（±3dB)   80 Hz-20 kHz
Rated Power(AES/Peak)   550W / 2200W
Sensitivity（1m/1w)   102 dB
Max SPL(1m)   130 dB
Nominal Impedance   8 ohms
Nominal dispersion angle( H x V )   120°x 7°
Splay angle setting   0°...7°(1 increment)
Connections     2×Neutrik® Speakon NL4'S
Pin assignment
              Passive
              BI-AMP
  NL4: +1/-1
  NL4: +1/-1 LF: 450W 8 ohms
  NL4: +2/-2 HF: 160W 8 ohms
Enclosure   15mm Premium Finland birch plywood
Finish   Black Polyurea Coating
Protective Grille   Black perforated steel grille with acoustic dust screen
Rigging
 		   Quick rigging with 2 pcs shackles in steel end frame;
  Secured with Ø8mm quick-release lock pins.
Dimensions (h x w x d)   360 x 366 x 465 mm [ 14,2 x14,4x18,3 in]
Net Weight   19.6 Kg / 43 Ibs
Packing   Carton
