Product Name: TC- 12 |

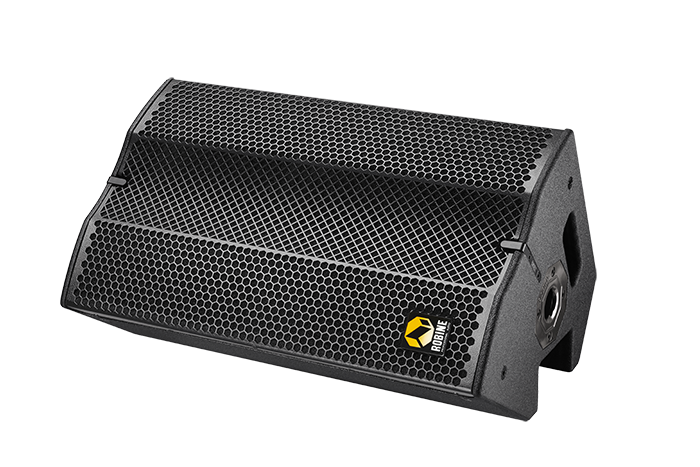

Products Pic: |
 |
About this product: |
Model：TC-12
Type：Two-way full-range system
Drivers： 1 x 3'' HF / 1 x 12'' LF Neodymium woofers
Frequency Response（±3dB)：75 Hz-20 kHz
Rated Power(AES/Peak)：600W / 2400W
Sensitivity（1m/1w)：101 dB
Max. SPL：129 dB
Nominal Impedance： 8 ohms
Dispersion（-6dB)： 90° H × 50° V
Connector： 2×Neutrik® Speakon NL4'S
Pin assignment : NL4: +1/-1
Enclosure： 15mm Premium Finland Birch Plywood
Protective Grille : Black perforated steel grille
Suspension/Mounting:M8 internal rigging on top ，
bottom and bilateral for pull up;
Octagonal alloy materia base,
38 mm pole mount adapter.
Finish：Black polyurea coating
Dim.（HxWxD)：600x365x322mm[ 23,6 x 14,4 x 12,7 in]
N.W：17.8 Kg / 39.2 Ibs
Packing: Carton
|
