Robine Professional Audio's Products

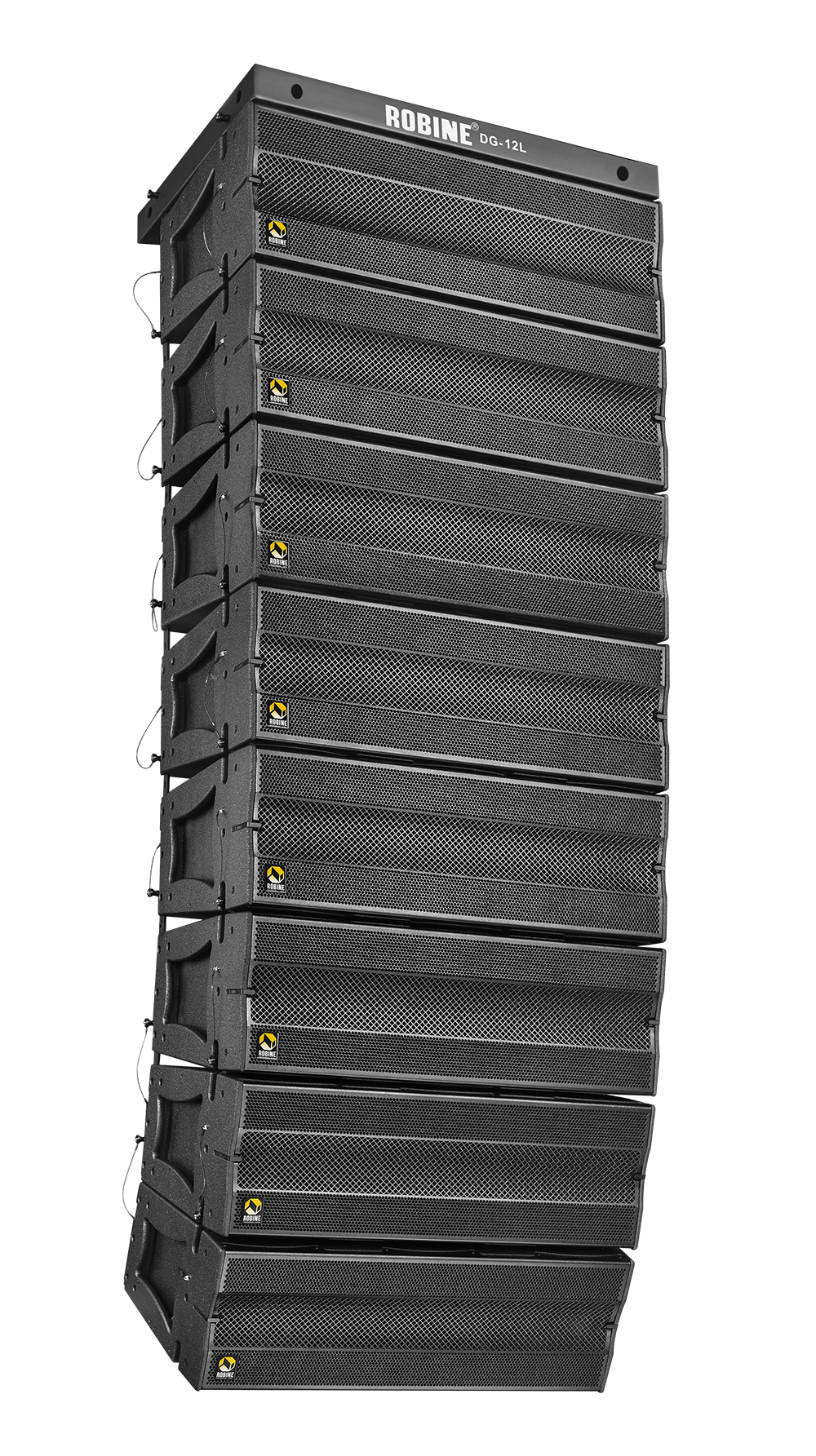

Product Name: LA-12 Line Array Loudspeaker System |
||||||||||||||||||||||||||||||||||||||
Products Pic: |
||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||
About this product: |
||||||||||||||||||||||||||||||||||||||
|
| Type | Dual12'' Line Array Loudspeaker System |
| Drivers | 2 x 1.75''HF / 4 x 5''MF/ 2 x 12''LF Neodymium |
| Frequency response | 40 - 18000 Hz |
| Nominal impedance HF/MF/LF | 8/ 8/ 8 ohms |
| Power handling capacity HF(RMS/Peak) | 200/400 W |
| Power handling capacity MF(RMS/Peak) | 400/800 W |
| Power handling capacity LF(RMS/Peak) | 900/1800 W |
| Nominal dispersion angle( H x V ) | 120° x 7° |
| Splay angle setting | 0°...10°(2 increment) |
| Sensitivity(1w/1m) HF/MF/LF | 107 dB / 92.5 dB / 99 dB |
| Max SPL(1m) | 139 dB |
| Connections | 2×Neutrik® Speakon NL8'S |
| Pin assignment | NL8: HF+4/-4, MF+3/-3, LF+2/-2, |
| Enclosure | 15mm Premium Finland birch plywood |
| Finish | Black Polyurea Coating |
| Protective Grille | Black perforated steel grille with acoustic dust screen |
|
Rigging |
Quick rigging with 2 pcs shackles in steel end frame; Secured with Ø8mm quick-release lock pins. |
| Dimensions (h x w x d) | 342 x 990 x 550 mm [13,5 x 39 x 21,7 in] |
| Net Weight | 46 kg/101 lbs |
